Layered PyMOL renders

Portein composes PyMOL ray-traced images by stacking layers — each layer is its own PyMOL representation rendered independently, then alpha-composited together with user-controlled transparencies.

Any setting valid for pymol.cmd.set(...) can be passed via portein.PymolConfig’s pymol_settings dict.

import tempfile
from pathlib import Path

import yaml
from biotite import structure as struct
from biotite.structure import io as bio
from PIL import Image

import portein

The package ships some default PyMOL settings under configs/:

with open("../../configs/pymol_settings.yaml") as f:
    pymol_settings = yaml.safe_load(f)
pymol_settings

{'ambient': 0.5,
 'antialias': 2,
 'cartoon_discrete_colors': True,
 'cartoon_fancy_helices': True,
 'cartoon_sampling': 20,
 'depth_cue': False,
 'hash_max': 300,
 'light_count': 1,
 'ray_opaque_background': False,
 'ray_shadows': False,
 'ray_texture': 0,
 'ray_trace_disco_factor': 1,
 'ray_trace_fog': False,
 'ray_trace_gain': 0,
 'ray_trace_mode': 1,
 'specular': False,
 'surface_quality': 2}

output_dir = Path(tempfile.mkdtemp())

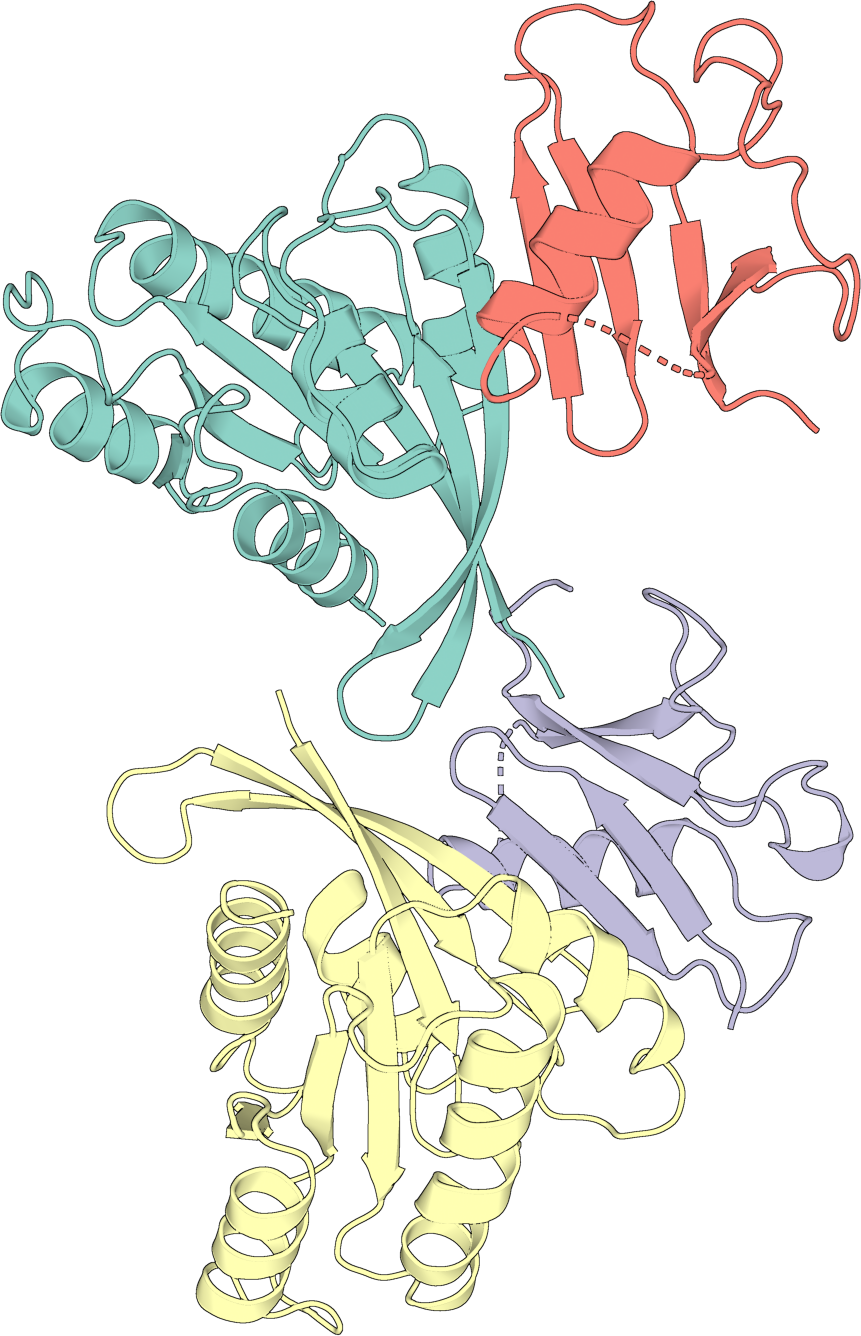

Simple cartoon

A single-layer cartoon, colored by chain. rotate=True orients the structure before rendering.

protein_config = portein.ProteinConfig(
    pdb_file="../_data/7lc2.pdb",
    rotate=True,
    width=1000,
    chain_colormap="Set3",
    output_prefix=str(output_dir / "7lc2_simple"),
)
pymol = portein.Pymol(
    protein=protein_config,
    layers=[portein.PymolConfig(representation="cartoon", pymol_settings=pymol_settings)],
)
image_file = pymol.run()
portein.crop_to_content(Image.open(image_file))

/home/runner/work/portein/portein/portein/rotate.py:23: NumbaPerformanceWarning: np.dot() is faster on contiguous arrays, called on (Array(float64, 1, 'A', False, aligned=True), Array(float64, 1, 'A', False, aligned=True))
  m = find_best_projection(coords)
/home/runner/work/portein/portein/portein/rotate.py:23: NumbaPerformanceWarning: np.dot() is faster on contiguous arrays, called on (Array(float64, 2, 'C', False, aligned=True), Array(float64, 1, 'A', False, aligned=True))
  m = find_best_projection(coords)
/home/runner/work/portein/portein/portein/rotate.py:28: NumbaPerformanceWarning: np.dot() is faster on contiguous arrays, called on (Array(float64, 2, 'A', False, aligned=True), Array(float64, 2, 'F', False, aligned=True))
  matrix = rotate_to_maximize_bb_height(coords[:, :2]) @ matrix

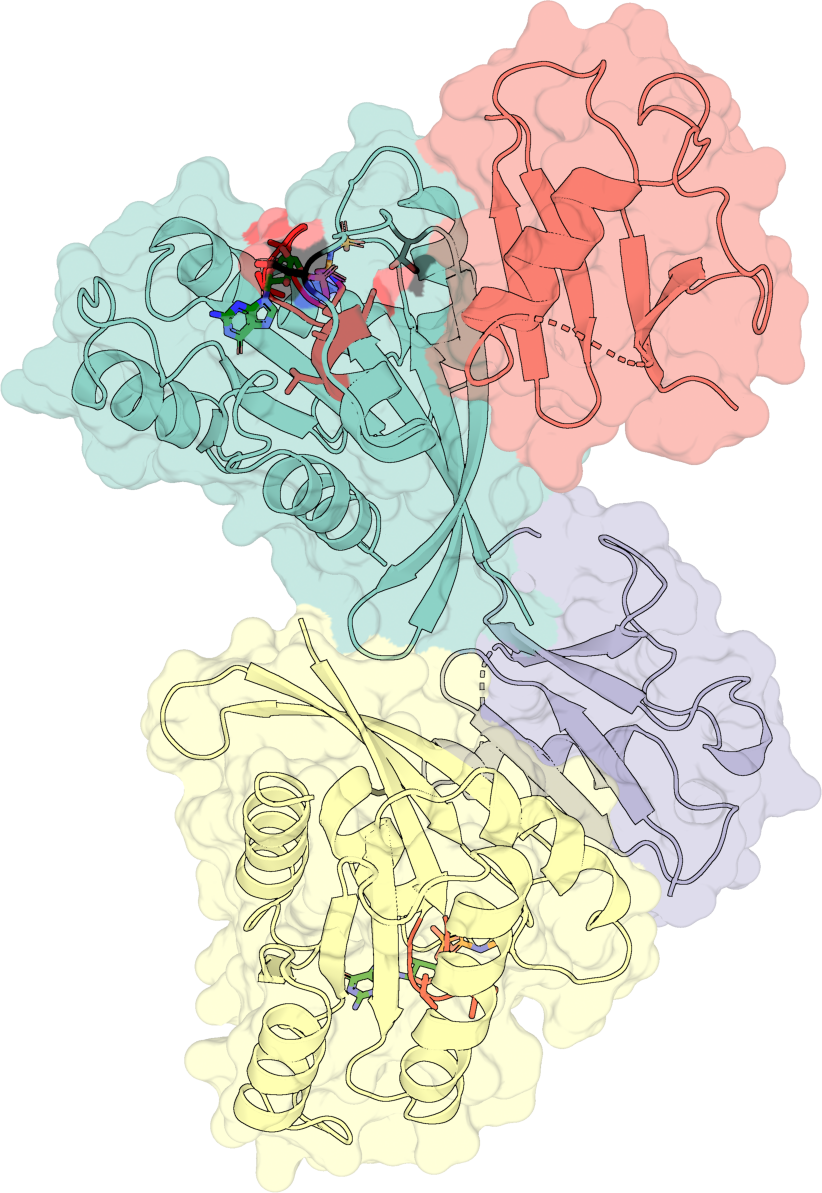

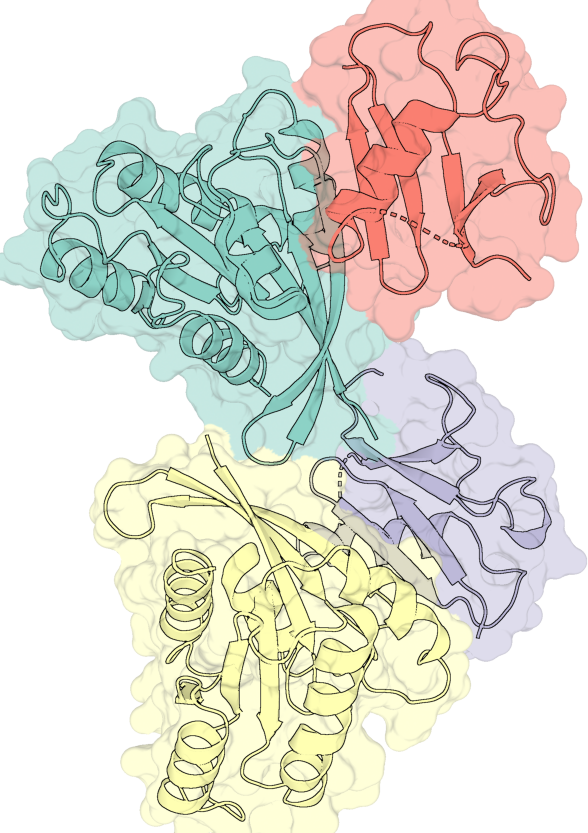

Four-layer composite

Layer the surface (50% opacity), the cartoon, sticks for highlighted residues, and sticks colored green for the bound ligand. The selection="highlight" keyword picks up the residues passed via highlight_residues on the ProteinConfig.

protein_config = portein.ProteinConfig(
    pdb_file="../_data/7lc2.pdb",
    rotate=True,
    chain_colormap="Set3",
    highlight_residues={
        "A": {"black": [30, 35], "red": list(range(10, 20))},
        "B": {"black": [25], "red": list(range(10, 16))},
    },
    width=1000,
    output_prefix=str(output_dir / "7lc2"),
)
layers = [
    [
        portein.PymolConfig(representation="surface", pymol_settings=pymol_settings, transparency=0.5),
        portein.PymolConfig(representation="cartoon", pymol_settings=pymol_settings),
        portein.PymolConfig(representation="sticks", pymol_settings=pymol_settings, selection="highlight"),
        portein.PymolConfig(
            representation="sticks",
            pymol_settings=pymol_settings,
            selection="resn GNP",
            color="green",
        ),
    ],
]
pymol = portein.Pymol(protein=protein_config, layers=layers, buffer=10)
image_file = pymol.run()
portein.crop_to_content(Image.open(image_file))

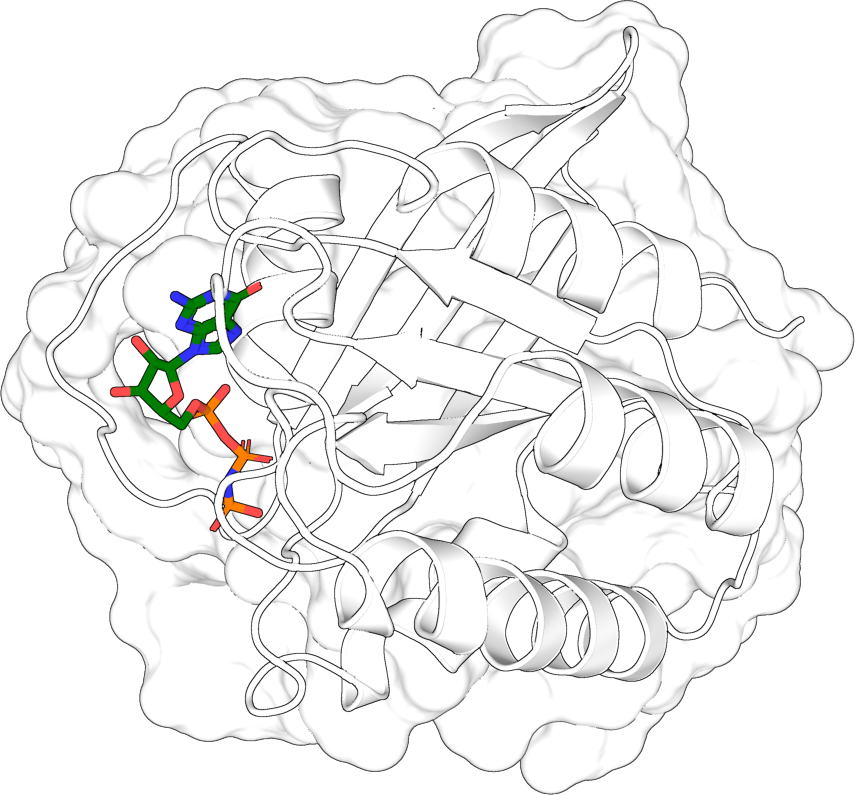

Zoom on a ligand pocket

Pick out the residues near a bound ligand, rotate to maximize the pocket’s projection, save only the proximal chains, and render with a translucent surface.

import numpy as np

pdb = portein.read_structure("../_data/7lc2.pdb")
ligand = pdb[(pdb.chain_id == "A") & (pdb.res_name == "GNP")]
mask = struct.CellList(pdb, 6).get_atoms(ligand.coord, 6, as_mask=True).any(axis=0)
ligand_pocket = pdb[mask]
proximal_chains = struct.get_chains(ligand_pocket)

# Orient to best-show the pocket
rotation, translation = portein.get_best_transformation(ligand_pocket.coord.astype(np.float64))
pdb_oriented = struct.rotate(struct.translate(pdb, translation), rotation)

# Save only the proximal chains
pocket_path = output_dir / "7lc2_ligand.pdb"
bio.save_structure(str(pocket_path), pdb_oriented[np.isin(pdb_oriented.chain_id, proximal_chains)])

protein_config = portein.ProteinConfig(
    pdb_file=str(pocket_path),
    rotate=False,
    chain_colormap="white",
    width=1000,
    output_prefix=str(output_dir / "7lc2_pocket"),
)
layers = [
    # Surface as its own layer
    portein.PymolConfig(representation="surface", pymol_settings=pymol_settings, transparency=0.3),
    # Cartoon + ligand sticks share one ray-trace so they depth-interleave.
    [
        portein.PymolConfig(representation="cartoon", pymol_settings=pymol_settings),
        portein.PymolConfig(
            representation="sticks",
            pymol_settings=pymol_settings,
            selection="(chain A and resn GNP)",
            color="green",
        ),
    ],
]
pymol = portein.Pymol(protein=protein_config, layers=layers)
image_file = pymol.run()
portein.crop_to_content(Image.open(image_file))

Layer compositing

Each entry in layers is either a bare PymolConfig or a nested list of PymolConfigs, and that distinction controls how the entry’s geometry composites with the rest:

• A bare PymolConfig is rendered as its own cmd.ray() pass, and its transparency becomes a flat 2D PIL alpha across the layer’s PNG before alpha-compositing. This is the right tool for elements that should sit uniformly in front of or behind everything else (a translucent cartoon backdrop, a highlight band drawn boldly on top, etc.).

• A nested list[PymolConfig] packs all the included layers into one shared PyMOL scene and a single cmd.ray() call. PyMOL’s z-buffer interleaves their geometries per pixel (like what PyMol’s native super command does for two superposed structures) and each layer’s transparency becomes a depth-aware per-selection setting (cartoon_transparency, transparency for surfaces, stick_transparency, etc.).

Example:

protein_config = portein.ProteinConfig(
    pdb_file="../_data/7lc2.pdb",
    rotate=True,
    width=600,
    chain_colormap="Set3",
    output_prefix=str(output_dir / "compositing_demo"),
)

# Two bare layers — each is its own ray-trace, then PIL-composited.
# The cartoon PNG renders on top of the translucent surface PNG.
protein_config.output_prefix = str(output_dir / "decals")
decals_image = portein.Pymol(
    protein=protein_config,
    layers=[
        portein.PymolConfig(representation="surface", pymol_settings=pymol_settings, transparency=0.5),
        portein.PymolConfig(representation="cartoon", pymol_settings=pymol_settings),
    ],
).run()
portein.crop_to_content(Image.open(decals_image))

# One nested-list group — both layers share the same ray-trace.
# The translucent surface and the cartoon share the z-buffer: the cartoon
# appears behind wherever the surface is in front, and
# unmuted where the cartoon protrudes.
protein_config.output_prefix = str(output_dir / "grouped")
grouped_image = portein.Pymol(
    protein=protein_config,
    layers=[
        [
            portein.PymolConfig(representation="surface", pymol_settings=pymol_settings, transparency=0.5),
            portein.PymolConfig(representation="cartoon", pymol_settings=pymol_settings),
        ],
    ],
).run()
portein.crop_to_content(Image.open(grouped_image))

When to use which:

Want	Layer entry
Uniform 2D translucency over each whole layer	bare PymolConfig
Depth-correct interleaving of overlapping geometries	[PymolConfig, ...]
Two superposed structures rendered like PyMOL’s super	one nested group
Surface + sticks where the ligand should occlude correctly	one nested group
Highlight band drawn boldly on top regardless of depth	bare PymolConfig

You can mix the two in one render — for example, a translucent cartoon as a backdrop (bare) plus a nested group of side-chain + ligand sticks that need to weave through each other:

layers=[
    portein.PymolConfig(representation="cartoon", selection="all", transparency=0.5),
    [
        portein.PymolConfig(representation="sticks", selection="resi 14+15+16"),
        portein.PymolConfig(representation="sticks", selection="resn GNP", color="green"),
    ],
]

From the command line

Save a YAML with the protein config:

pdb_file: 7lc2
rotate: true
width: 1000
chain_colormap: Set3
output_prefix: examples/7lc2_simple

Then run:

portein pymol protein.yaml
portein pymol protein.yaml pymol_layers.yaml --buffer 10
